AOC-120GCXP-10M (Cabo 120G CXP AOC)

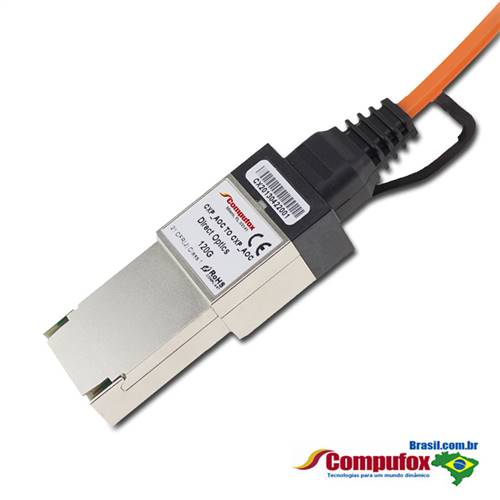

120GB CXP Active Optical cabo, CXP AOC, 10 Meter

Nosso Preço: R$9,612.00

Garantia: Garantia de 90 dias
Disponibilidade: Disponível 10 dias após sua compra
Método de envio: Sedex


Código do Produto: AOC-120GCXP-10M


Escolha Comprimento



Qtde:
Descrição

120GB CXP Active Optical cabo, CXP AOC, 10 Meters.

Compufox's CXP active optical cabo assemblies are fully duplex 12 channel cabo assemblies that supports signal transmission rates up to 10.3 Gb/s per channel for distances from 2 to 100 meters using laser optimized advance high-performance multimode fiber (OM3). The CXP cabo interface is based on the SFF-8632 and Infiniband industry standards.

These cabos are ideal for high density HPC signal transmission applications typically seen in most large data centers and in high computational applications. Compufox's CXP cabos support Infiniband SDR, DDR and QDR signal transmission performance and also support Fibre Channel 8G per channel transmission.

Features

  • Compliant to SFF-8642: Mini Multilane Series: Shielded Integrated Connector, and IBTA Annex A6 CXP Interface Specification
  • Compliant to InfiniBand Architecture Specification.
  • Twelve independent Transmitters, and twelve independent Receivers, all operate at 10Gbps.
  • Bi-directional operation, 12 × 10 Gbps per direction.
  • Support transmission distance up to 100 meters.
  • Low power consumption: 3W (max)
  • 12ch 850nm VCSEL array
  • 12ch PIN-detector array
  • Operating case temperature 0°to 70° .
  • RoHS 6/6 compliant
  • I2C communication bus.

Applications

  • 12.5 Gbps Proprietary Interconnects
  • 100 GbE and IB-QDR/IB-DDR/IB-SDR interconnects
  • Data Aggregation, Backplane and Proprietary Protocol and Density Applications
  • Datacom/Telecom switch & router connections

Specifications

  • cabo Type: CXP AOC
  • Connector A: CXP 12x
  • Connector B: CXP 12x
  • Length: 10 Meters
  • Wire: OM3 MMF
  • RoHS Compliant: Yes

We can provide this cabo in any length. If the length you need is not listed on our website, please feel free to contact us.
