Home > Cabos AOC > QSFP+ to 4 SFP+ AOC >

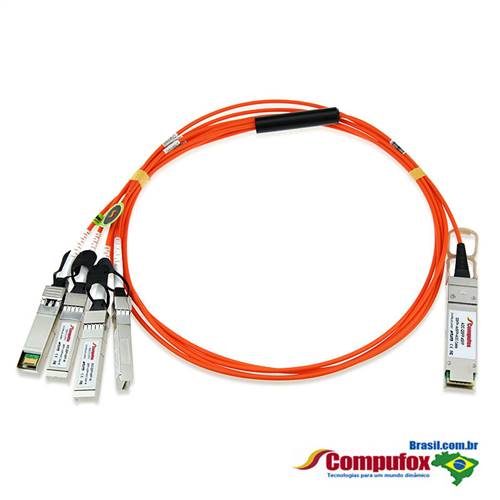

AOC-QSFP-4SFP-3M (Cabo QSFP+ para 4 SFP+ AOC)
QSFP+ to 4 x SFP+ AOC cabo, 3 Meter

Nosso Preço: R$1,825.20

Garantia: Garantia de 90 dias
Disponibilidade: Disponível 10 dias após sua compra
Método de envio: Sedex


Código do Produto: AOC-QSFP-4SFP-3M

Especifique Equipamento para Lado SFP+

Selecionar Marca:

Compatibilidade:
Especifique Equipamento para Lado QSFP+

Selecionar Marca:

Escolha Conector 2

ST
Escolha um Tamanho

Tamanho*:

Compatibilidade:

Escolha Comprimento





Qtde:
Descrição

QSFP+ to 4 x SFP+ AOC cabo, 10 Meters.

Compufox's QSFP+ to 4x SFP+ breakout Active Optical cabo offers IT professionals a cost-effective interconnect solution for merging 40G QSFP and 10G SFP+ enabled host adapters, switches and servers.

For typical applications, users can install this splitter Active Optical cabo between an available QSFP+ port on their 40Gbps rated switch and feed up to four upstream 10GbE SFP+ enabled switches. Each QSFP+-SFP+ splitter Active Optical cabo features a single QSFP+ connector (SFF-8436) rated for 40Gbps on one end and (4) SFP+ connectors (SFF-8431), each rated for 10-Gb/s, on the other.

Features

  • Electrical interface compliant to QSFP+ connector (SFF-8436) and SFP+ connectors (SFF-8431)
  • Hot Pluggable
  • 850nm VCSEL transmitter, PIN photo-detector receiver
  • Up to 100m on OM3 MMF
  • Operating case temperature: 0to 70°C
  • All-metal housing for superior EMI performance
  • RoHS compliant (lead free)

Applications

  • 40 Gigabit Ethernet
  • Fibre Channel Applications
  • InfiniBand QDR, SDR, DDR
  • High-performance computing clusters
  • Servers, switches, storage and host card adapters

Specifications

  • cabo Type: QSFP+ to 4 SFP+ AOC
  • Connector A: QSFP+ SFF-8436
  • Connector B: 4 x SFP+ SFF-8431
  • Length: 10 Meters
  • Wire: OM3 MMF
  • RoHS Compliant: Yes

We can provide this cabo in any length. If the length you need is not listed on our website, please feel free to contact us.
