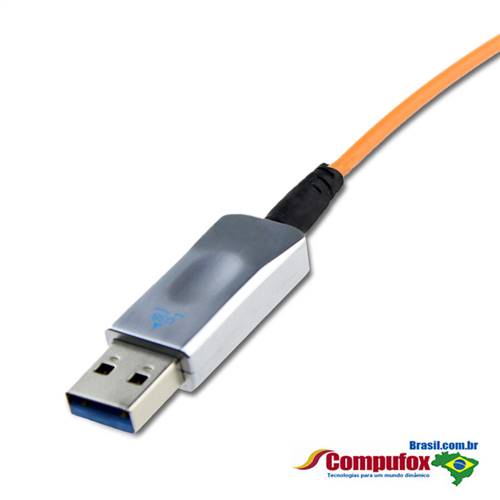

USB 3.0 Active Optical cabo, USB AOC, 50 Meters.
The USB 3.0 Active Optical cabo (AOC) are designed to be compliant
with SuperSpeed USB electrical specifications, offering seamless
interoperability between existing USB 3.0 hosts, hubs and devices,
ensuring a trouble-free plug-and-play experience.
With an ultra-thin profile and long reach, the USB 3.0 AOC breaks the
distance barrier and introduces a cost-effective and high-performance
solution enabling existing devices to be used in new ways such as for
industrial and security cameras, Industrial and Medical machine control
and High-Definition surveillance.
Features
- Extends USB 3.0 super speed devices up to 100m over fiber optics (MMF)
- Supports all USB 3.0 device type: control, Interrupt, bulk and isochronous at up to 5 Gbps
- 850nm VCSEL transmitter, PIN photo-detector receiver
- Operates with USB 3.0 super speed hot controllers
- Supports all major operating systems including Windows, Mac OS, and Linux
- Number of devices can be increased using additional hubs
- Remote unit require standard power to USB AOC port
- USB 3.0 Standard-A Form-factor
- Low power consumption
- Operating case temperature: 0 to 70?
- All-metal housing for superior EMI performance
- RoHS compliant (lead free)
Applications
- Industrial Control
- Digital Signage
- Home Network Integration
- Medical Device Connectivity
- KVM Extension
- Remote Desktop USB 3.0 Connections
- Security: web camera, access control
- USB 3.0 Devices Sharing: print, scan, storage
Note 1:
The fiber part of USB 3.0 AOC does not carry power, so upstream
connector should be powered by Host side, and downstream connector
should be powered by Device side.
Note 2: Host side should be a USB 3.0
Compatível computer (host computer) with a USB 3.0 compliant operating
system. USB 3.0 AOC will not function when connected to USB2.0/USB1.1
Host.
Specifications
- cabo Type: USB 3.0 AOC
- Connector A: USB
- Connector B: USB
- Length: 50 Meters
- Wire: OM3 MMF
- RoHS Compliant: Yes
We can provide this cabo in any length. If the length you need is not listed on our website, please feel free to contact us.
