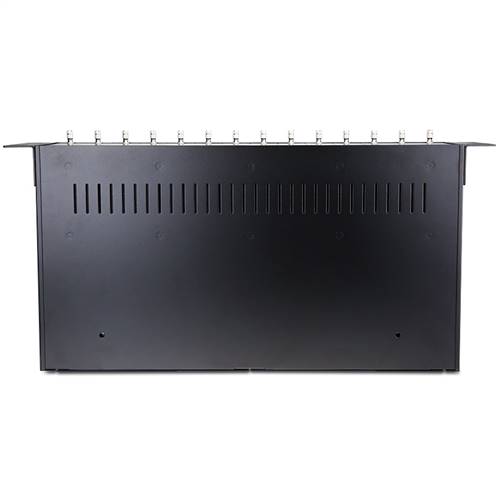

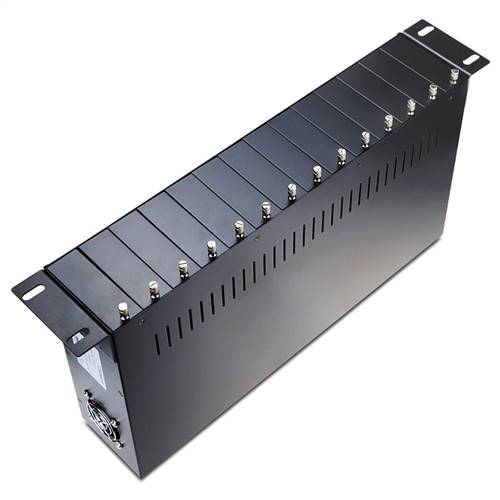

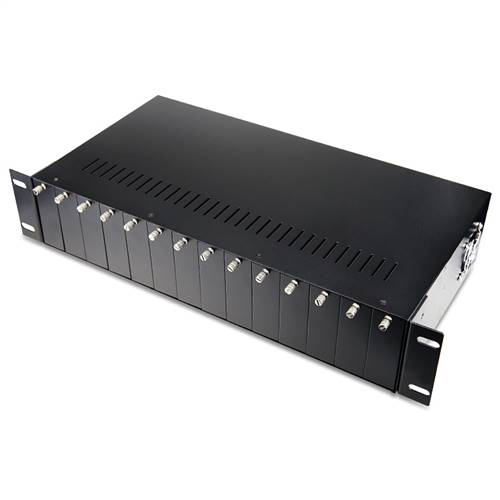

The Chassis-based Media Converters include a number of independent media converters and a chassis capable of housing up to 14 media converters. You can start with single media converters, each equipped with its own housing and AC power adapter. When your requirements grow big, you can mount a chassis in your equipment rack and install your media converters in the chassis. The housing of each media converter can be easily removed, and the media converter PC board can be slid into the chassis.

The chassis lets you install multiple media converters in an equipment rack together with the network devices for which they provide media conversion. This provides for space saving, and the cabling will look neat. The chassis comes with its own universal AC to DC power supply. For maximum power availability, an optional redundant power supply is available for installation in chassis.

Compufox supply two types of rack-mounted chassis for unmanaged media converters: 2U 14 slots media converter chassis and 2U 16 slots media converter chassis. The 14 slots media converter chassis supports plug-and-play installation of stand-alone media converters convert modules. It can hold at most 14 pieces media converters. The 16 slots media converter chassis should be used with card-type media converters. It can hold at most 16 card-type converters.

Note：The Rack Chassis is empty, no Media Converter is included.

Features

• For up to 14 Single-mode and Multi-mode standalone fiber media converters
• Supports one fiber port + 1xRJ45 or one fiber port + 2xRJ45 standalone Ethernet media converter
• Supports one fiber port + 1xRJ45 standalone Gigabit media converter
• Standard: IEEE802.3 10/100 Base T Ethernet, IEEE802.3U, 100Base V TX/FX Fast Ethernet, IEEE802.3 x Flow control, IEEE802.3.1q VLAN, IEEE802.1p QoS, IEEE802.1d Spanning Tree
• Power configuration: Single power supply
• Hot Swap Support for the Converters to ensure a flexible connection

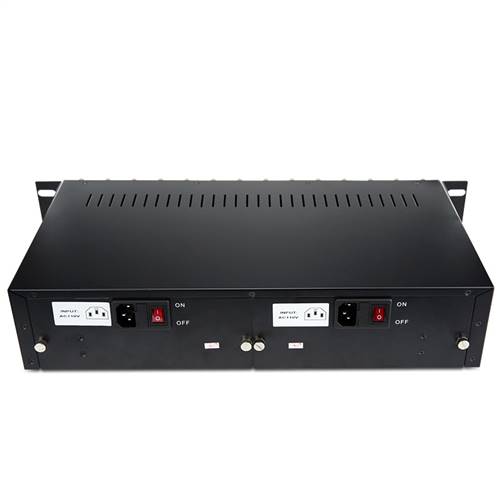

• Equipped with a second, redundant Power Supply for maximum stability and reliability

Specifications

• Number of slot: 14
• Media converters adapted: 14 slots chassis stand-alone media converters
• Power in: AC 100 V~260 V, 50~60Hz ; or DC 48V
• Power out: DC + 5V , 12A (single power) or 24A (dual power)
• Diameter of DC plug: 2.5/5.5mm
• Pipple: ≤50Mv
• Noise: ≤50Mv
• Protection of power supply: circuit-breaker when over voltage; circuit-breaker when over flow; circuit-breaker when short circuit
• Operating Temperature: 0℃~+50℃
• Storage Temperature: -20℃~+85℃
• Relative Humidity: 5%~95%
