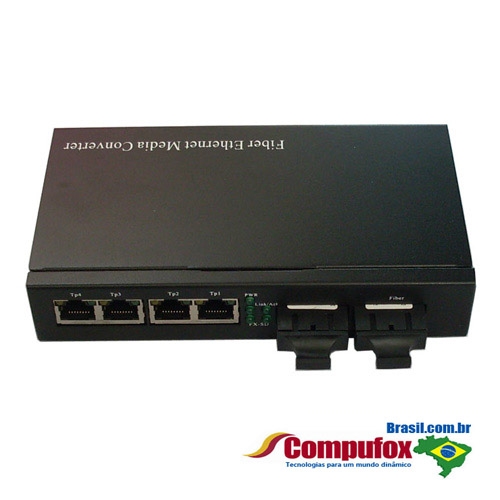

FMC-FE-2F4T (Fiber Media Converter)
10/100M Dual Fiber 2-port SC/ST/FC & 4-port RJ45 Fast Ethernet Fiber Media Converter

Nosso Preço: R$891.00

Garantia: Garantia de 90 dias
Disponibilidade: Disponível 10 dias após sua compra
Método de envio: Sedex


Código do Produto: FMC-FE-2F4T

Opções de Fibra

1310nm Multimodo 2Km or Monomodo 20Km
1310nm Monomodo 40Km [Add R$81.00]
1550nm Monomodo 80Km [Add R$1,134.00]
1550nm Monomodo 120Km [Add R$1,593.00]
Conector

SC
ST
FC

Qtde:
Descrição


10/100M Dual Fiber 2-port SC/ST/FC & 4-port RJ45 Fast Ethernet Fiber Media Converter.

10/100Base dual fiber media converter is the conversion equipment of Ethernet optical-electronic signals between 10/100M UTP interface (TX) and 100M Fiber interface (FX). The traditional 10/100M Fast Ethernet can be extended to the distance of 120km through optical fiber link. The 10/100Base dual fiber media converters are with reasonable price and especially designed for network users.

Features

  • Data rate: 10/100M
  • UTP port supports: MDI / MDI-X auto crossover
  • Optical interfaces: SC, ST or FC; single mode/multimode
  • Supporting 1552 Byte packet
  • Wavelength: 1310nm/1550nm
  • Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction
  • Stand alone or card type can be chosen
  • External or internal power supply for selection by users

Specifications

  • Operating standards: IEEE802, 3u, 10/100Base-TX and 100Base-FX
  • MAC address table: 1K
  • UTP Connector: RJ-45 10/100Mbps; Fiber Connector: SC 100Mbps
  • UTP cabo: Cat. 5 UTP (the max distance up to 100m)
  • Fiber (Multimode) cabo: 50/125, 62. 5/125μm (the max distance up to 2km or 5km)
  • Fiber (Single mode) cabo: 8. 3/125, 8. 7/125, 9/125, 10/125μm (the max distance up to 20-120km)
  • Full Duplex: Supporting standard IEEE802. 3x
  • Half Duplex: Back pressure
  • LED: Power, FX FDX, FX Link/Act, TX 100, TX FDX, TX Link/Act
  • Power: AC 90 ~ 240V; DC 5V.1A
  • Ambient Temperature: 0 ~ 70
  • Humidity: 5% ~ 90%
