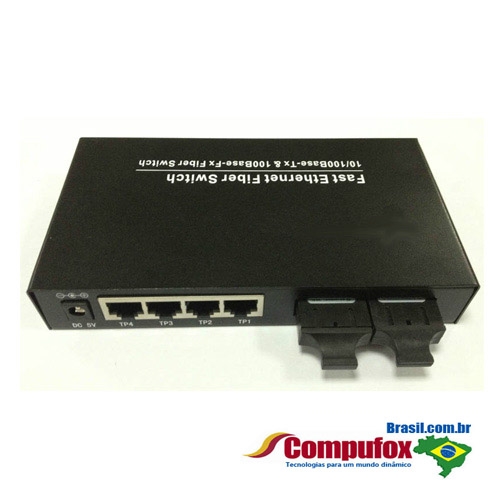

A Pair of 10/100M Single Fiber: 2-port SC/ST/FC & 4-port RJ45 BIDI WDM Fiber Media Converter.

10/100Base Single Fiber Fast Media Converter can convert Optical-Electric Ethernet signals between 10/100M UTP interface (TX) and 100M optical fiber interface (FX). It could extend traditional 10/100M Fast Ethernet to the distance of 80km through single optical fiber link. Its performance is stable and reliable, in line with the Ethernet design standards, and has anti-lightning protective measures. It must be used in couples. It is the campus broadband network, broadcasting network and intelligent broadband residential broadband fiber-to-floor fiber to the home of the best applications.

Features

• Data rate: 10/100M
• UTP port supports: MDI / MDI-X auto crossover
• Optical interfaces: SC, ST or FC; single mode
• Supporting 1600 Byte packet
• Wavelength: 1310nm/1550nm
• Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction
• Converter working mode could be chosen: Store and forward switch mode, modified cut-through switch mode, or Converter mode
• Stand alone or card type can be chosen
• Indicator function of link fault (LFP): When optical fiber is at fault, the converter could stop all the link
• To provide external DC power supply and built-in power supply in two forms

Application

• Operating standards: IEEE802, 3u, 10/100Base-TX and 100Base-FX
• MAC address table: 1K
• Data buffer: 128K
• UTP Connector: RJ-45 10/100Mbps; Fiber Connector: SC 100Mbps
• UTP cabo: Cat. 5 UTP (the max distance up to 100m)
• Fiber (Single mode) cabo: 8. 3/125, 8. 7/125, 9/125, 10/125μm (the max distance up to 90km)
• Full Duplex: Supporting standard IEEE802. 3x
• Half Duplex: Back pressure
• Working temperature: 0 ~ 50℃
• Storage temperature: -20 ~ 70℃
• Humidity: 5% ~ 90% (noncondensing)
