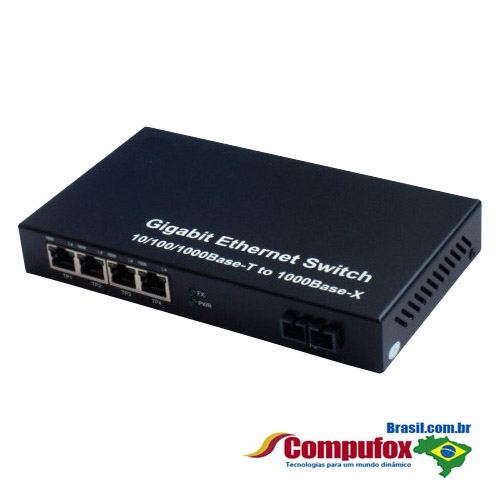

FMC-GEA-1F4T (Fiber Media Converter)
10/100/1000M Dual Fiber 1-port SC/ST/FC & 4-port RJ45 Fiber Media Converter

Nosso Preço: R$783.00

Garantia: Garantia de 90 dias
Disponibilidade: Disponível 10 dias após sua compra
Método de envio: Sedex


Código do Produto: FMC-GEA-1F4T

Opções de Fibra

850nm Multimodo 550m
1310nm MMF 2Km or SMF 10Km [Add R$48.60]
1310nm Monomodo 40Km [Add R$135.00]
1550nm Monomodo 80Km [Add R$783.00]
Conector

SC
ST
FC

Qtde:
Descrição


10/100/1000M Dual Fiber: 1-port SC/ST/FC & 4-port RJ45 Fiber Media Converter.

The 10/100/1000Base auto-sensing dual fiber Ethernet media converter converts the electrical signal of a 10/100/1000 Ethernet signal from copper to fiber. This solution will offer a low-cost integration option for network managers who want to migrate from 10/100 networks to Gigabit Ethernet. Gigabit only switches can now be connected to 10/100 networks without the need to upgrade the 10/100 side, allowing network managers to add new equipment gradually.


Features

  • Data rate: 10/100/1000M
  • Compliant with IEEE 1000Base-T and 1000Base-LX
  • One 10/100/1000Base-T RJ-45 port autosensing featured
  • One 1000Base-LX/SX Port w/ SC/ST-Type Connector
  • UTP port supports: MDI / MDI-X auto crossover
  • Supporting the max 1536 bytes packets
  • Wavelength: 850nm/1310nm/1550nm
  • Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
  • Supporting flow control
  • Stand alone or card type can be chosen
  • Adopting internal power supply

Specifications

  • Operating standards: IEEE802, 3z/AB, 1000Base-T and 1000Base-SX/LX
  • MAC address table: 4K
  • Data buffer: 256K
  • UTP Connector: RJ-45 10/100/1000Mbps; Fiber Connector: SC 100Mbps
  • UTP cabo: UTP: Cat. 5e or Cat. 6 (the max distance up to 100m)
  • Fiber (multimode): 50/125, 62. 5/125μm (the max distance up to 550/224m)
  • Fiber (single mode): 8. 3/125, 8. 7/125, 9/125, 10/125μm (the max distance up to 80km)
  • Full Duplex: Supporting standard IEEE802. 3x
  • LED Indicators: FX LINK, FX FDX, TP LINK, TP FDX, ACT, POWER
  • Half Duplex: Back pressure
  • Power: AC 90 ~ 240V; DC 5V.2A
  • Working temperature: 0 ~ 50℃
  • Storage temperature: -20 ~ 70℃
  • Humidity: 5% ~ 90% (non-condensing)
